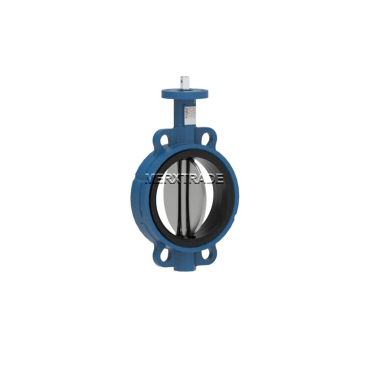

Butterfly valve wafer bare shaft Ductile iron/Aluminium bronze/NBR PN10/16-ANSI150-JIS5K/10K

Butterfly valve wafer bare shaft Ductile iron/Aluminium bronze/NBR PN10/16-ANSI150-JIS5K/10K
NBR
Model: Wafer Series M52 Material body: Ductile iron JS1030 GGG40
Connection: PN10/16/ANSI150#/JIS5-10K Material disc: St.St. ASTM A351 CF8M
Pressure: 16 bar, check tech data PDF Material seat: NBR
Temperature: -0°C +80°C Operation: Bare shaft
Test standard: EN 12266-1 Brand: MerxTrade Premium
Cartridge seat design
Approvals : WRAS, DVGW, CE/PED 97/23/EC category III module H (inquire at Merxtrade BV)
Marine body casting Type Approvals for: DNV/GL & Lloyd's register of shipping

Application: Horticulture, agriculture, greenhouse construction, boiler houses, shipbuilding, industry, heating, pump systems, engine rooms, marine,

download Datasheet (PDF)
SKU MXT-M52B030000
40
33
€36.56
Qty
minus-sm
plus-sm
50
43
€38.39
Qty
minus-sm
plus-sm
65
46
€48.15
Qty
minus-sm
plus-sm
80
46
€61.92
Qty
minus-sm
plus-sm
100
52
€99.10
Qty
minus-sm
plus-sm
125
56
€140.37
Qty
minus-sm
plus-sm
150
56
€193.58
Qty
minus-sm
plus-sm
200
60
€305.98
Qty
minus-sm
plus-sm
250
68
€562.98
Qty
minus-sm
plus-sm
300
78
€851.64
Qty
minus-sm
plus-sm
